Product Details
AOT is the professional integrated supplier for all industrial solutions.
AOT Steel Warehouse Industrial Storage Rack includes storage solutions for warehouses and other industrial job sites, where storing goods is a major part of the everyday operations. The racking storing solutions are widely accepted among the industrial sites for optimizing the available storage space and ensuring an optimum level of performance and productivity.
The Storage Rack Systems That We Supply Consist Of:
| ◆ Selective Pallet Racks | ◆ Radio Shuttle Racking System | ◆ Mezzanine Racking System |
| ◆ Long Span Shelves | ◆ Drawer Racking | ◆ Cantilever Racking |
| ◆ VNA Pallet Racking | ◆ Steel Pallet | ◆ Plastic Pallet |

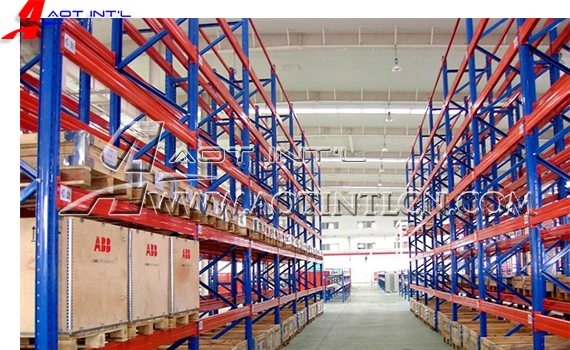

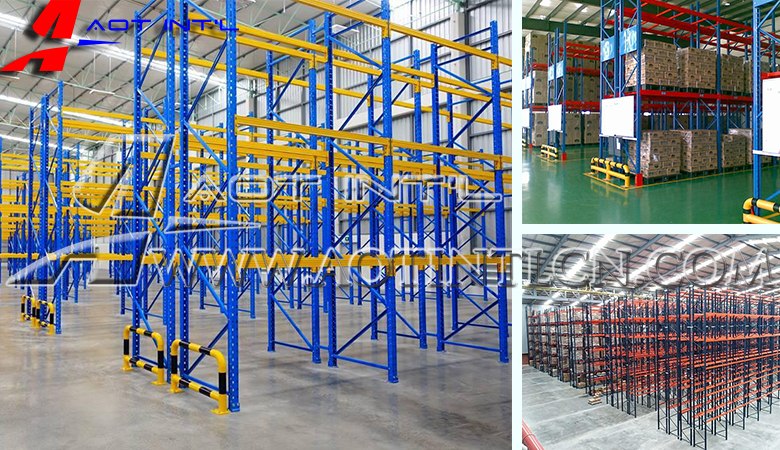

◆ Selective Pallet Racks |
| Feature: |
| |
| ◆ Selective pallet racking is the most popular & economical warehouse storage system; | ||
| ◆ The structure could be easily installed and adjusted; | ||
| ◆ Suitable for warehouse which has wide variety of goods; | ||
| ◆ Used in warehouse, factory, retail centers, &other storage and distribution center; | ||
| Technical Specificaion: | ||
| Length | 1,000mm-4,000mm | |
| Width | 700mm-1,500mm | |
| Height | 2,000mm-15,000mm | |
| Loading capacity | Max. 14 Tons | |

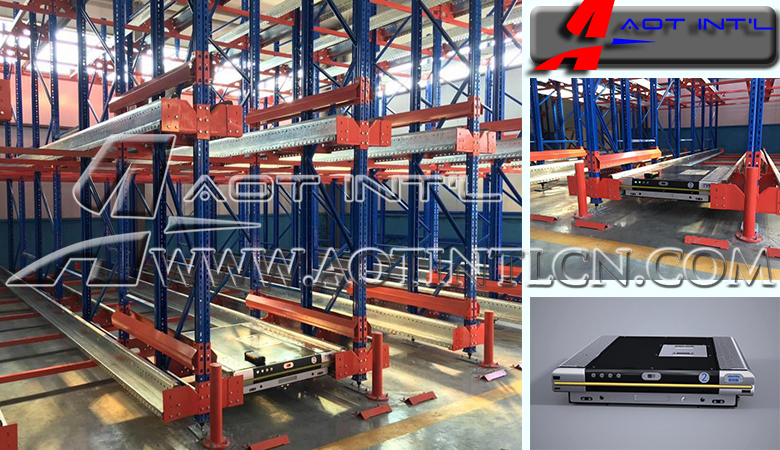

◆ Radio Shuttle Racking System |
| Feature: |
| |
| ◆ Shuttle racking system is for shuttle which based on the structure of Drive- in racking; | ||
| ◆ Depending on the warehouse structure, the shuttle racking system can be also support for FILO and FIFO; | ||
| ◆ No need the forklift to pick up goods inside the lane, but a shuttle instead. So it has a good safety performance; | ||
| ◆ Suitable for storing goods of large quantity with small varieties, such as food, chemical, tobacco, it is also the best choice for cold storage; | ||
| Technical Specificaion: | ||
| Length | 1,300mm-2,000mm | |
| Width | 1,000mm-1,500mm | |
| Height | 3,000mm-15,000mm | |
| Loading capacity | Max. 14 Tons | |

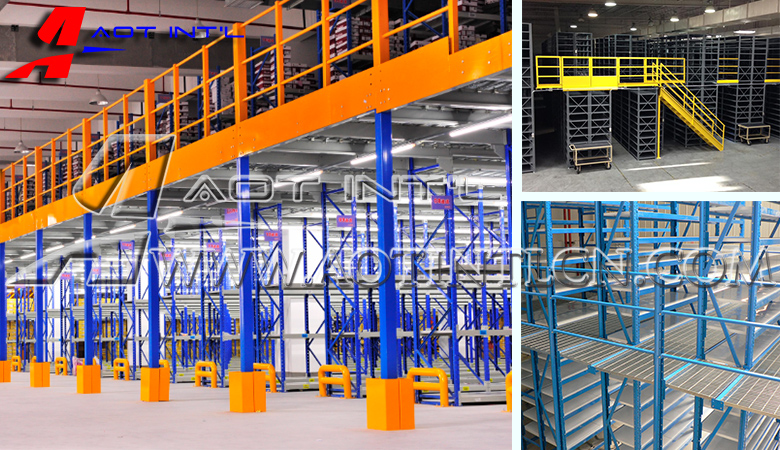

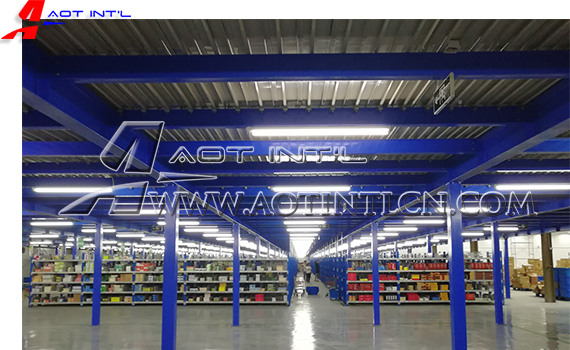

◆ Mezzanine Racking System |
| Feature: |
| |
| ◆ Mezzanine racking is usually designed into two or three layers; | ||
| ◆ Widely used in tall warehouse storing different types of goods and small bulks; | ||
| ◆ Taking full advantage of the space, it is a typical application for manual picking goods; | ||
| ◆ Mezzanine racking are usually designed with stairs. Also the elevator, hoisting machine, conveying belt etc. could be equipped according requirements; | ||
| Technical Specificaion: | ||
| Dimension | Customized | |
| Height | 2,000mm-8,000mm | |
| Loading capacity | 250-1,000tons/SQM | |

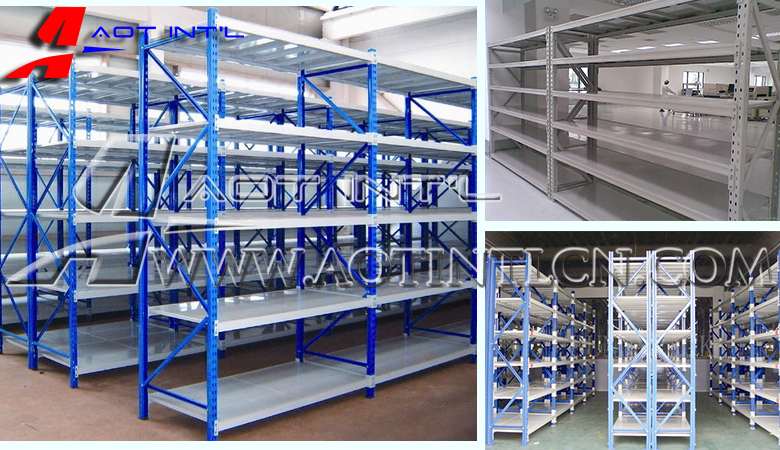

◆ Long Span Shelves |
| Feature: |
| |
| ◆ Widely used in high density storage of small parts, heavy items, large and bulky item; | ||
| ◆ Loading capacity can be up to 200-1000kg per layer based on different request; | ||
| ◆ Long Span Shelving, is a strong, durable, smart shelving system; | ||
| ◆ The bearing panel could be steel panel, wire decking and wooden panel etc.; | ||
| Standard Specifications of Long Span Shelving | ||||
| Length (mm) | Width (mm) | Height (mm) | Levels | Loading Capacity of Each level |
| 1200 | 400 | 2000 | 4 | 200Kgs |
| 2500 | 5 | 250Kgs | ||
| 600 | 2000 | 4 | 200Kgs | |
| 2500 | 5 | 250Kgs | ||
| 1600 | 400 | 2000 | 4 | 220Kgs |
| 2500 | 5 | 250Kgs | ||
| 600 | 2000 | 4 | 220Kgs | |
| 2500 | 5 | 250Kgs | ||
| 2000 | 500 | 2000 | 4 | 220Kgs |
| 2500 | 5 | 250Kgs | ||
| 600 | 2000 | 4 | 200Kgs | |
| 2500 | 5 | 250Kgs | ||
| 2400 | 400 | 2000 | 4 | 200Kgs |
| 2500 | 5 | 250Kgs | ||
| 600 | 2000 | 4 | 200Kgs | |
| 2500 | 5 | 250Kgs | ||

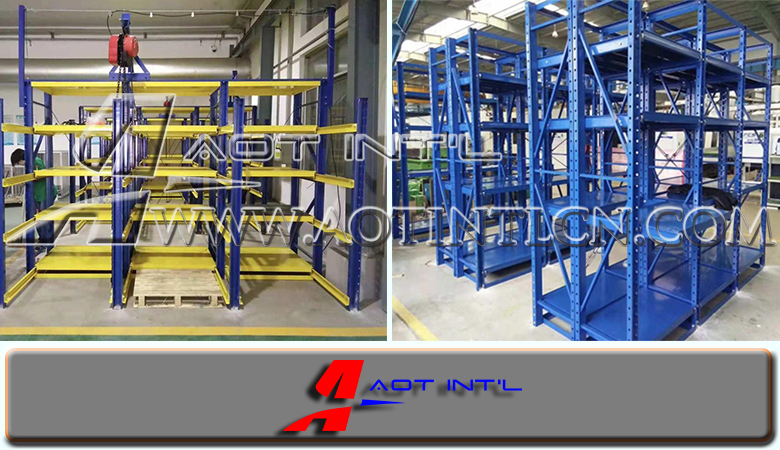

◆ Drawer Racking |
| Feature: |
| |
| ◆ Drawer racking, as know of mold shelf, mainly stores all kinds of mold items. The top of racks could be equipped with mobile hoist to store molds easily; | ||
| ◆ Guide rail is equipped at the bottom of each drawer. It is easy to slide the drawer even when it loads heavily; | ||
| ◆ The loading capacity will be around 200-800kgs per layer for light type drawer, while it could be 800-1500kgs for heavy type drawer; | ||
| ◆ Drawer racking is convenient for transportation, the assembly is simple and fast and this racking has better safety protection device; | ||
| Technical Specificaion: | ||
| Length | 800mm-2000mm | |
| Width | 600mm-2000mm | |
| Height | 1500-3000mm | |
| Loading capacity | 200-1500kg | |

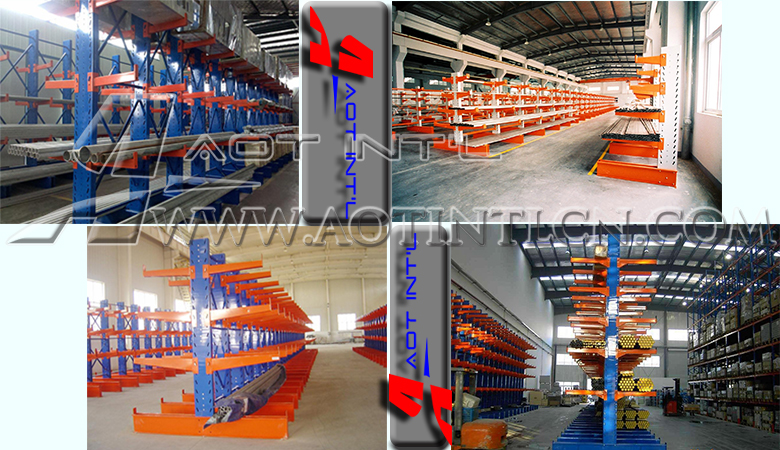

◆ Cantilever Racking |
| Feature: |
| |
| ◆ Cantilever racking is suitable for storing long-term materials, such as: pipes, profile steels, aluminum profiles, plastic steel etc; | ||
| ◆ Light structure and good load capacity. It can greatly improve the utilization rate and working efficiency of warehouse when storing irregular or special materials; | ||
| ◆ Cantilever racking can be designed to be single side or double side according requirements; | ||
| Technical Specificaion: | ||
| The main components of Cantilever Racking: | ||
| Posts; | Bases; | |
| Arms; | Bracing; | |
| X-bracing; | ||

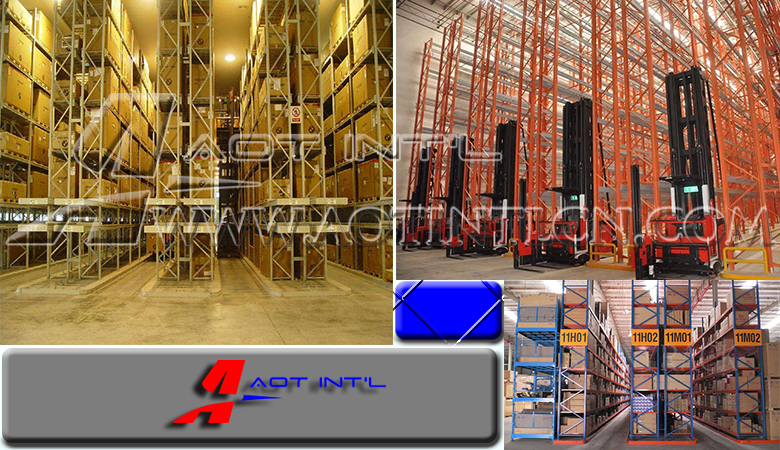

◆ VNA Pallet Racking |
| Feature: |
| |
| ◆ Narrow aisle pallet racking, also known as VNA pallet racking, is optimized on traditional selective pallet racking, the difference is that the roadway width is much smaller than selective pallet racking; | ||
| ◆ The utilization rate of warehouse storage is increased by about 20%; | ||
| ◆ Guide rails are installed at both sides of the aisles, can effectively reduce the damage caused by forklift operator; | ||
| ◆ VNA pallet rack is suitable for high-density storage, unit goods with many varieties, large batch, single major and fast circulation; | ||
| Technical Specificaion: | ||
| Length | 2,000mm-4.000mm | |
| Width | 700mm-1,500mm | |
| Height | 3,000mm-15,000mm | |
| Loading capacity | Max. 16 Tons | |

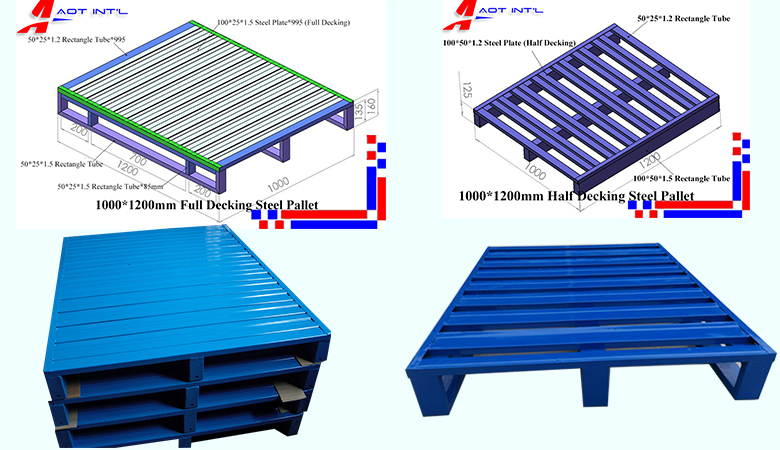

◆ Steel Pallet |
| Feature: |
| |
| ◆ Surface treatment: Galvanization or Powder coating spraying; | ||
| ◆ Bearing panel of steel pallet could be Full-decking type or Half-decking type according to the loading capacity and storing items; | ||
| ◆ Standard dimensions are based on company’s profile, and customized design also available; | ||
| ◆ Two-way and four-way steel pallet for option; | ||
| Technical Specificaion: | ||
| Length | 800-1400mm | |
| Width | 1000-1200mm | |
| Height | 80-150mm | |
| Loading capacity | Max. 10 Tons | |

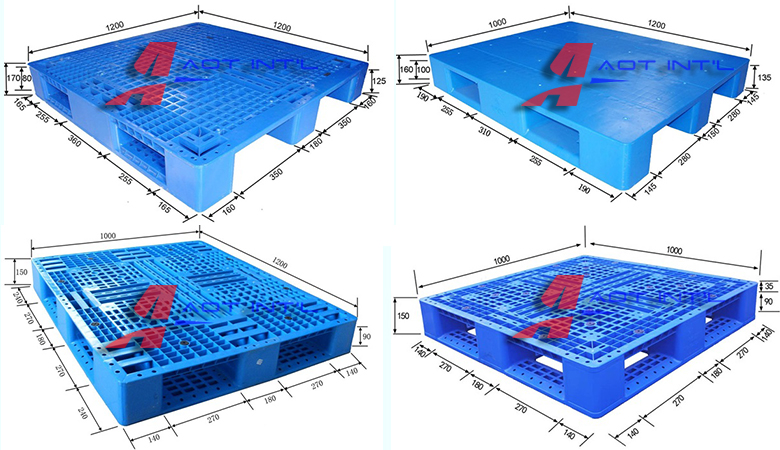

◆ Plastic Pallet |
| Feature: |
| |
| ◆ Raw material is HDPE, designed to be Single-faced deck & Double-faced deck; | ||
◆ Single-faced deck plastic pallet has only one side, the surface is mesh or flat type, the bottom is H,T and J type; | ||
| ◆ Double- faced deck plastic pallet has two same sides, surface can be mesh or flat type; | ||
| ◆ Loading parameters are static load, dynamic load and load on pallet racking; | ||
| Typcial Dimensions: | ||
| ◆ 1100*1100*150mm | ||
| ◆ 1200*1000*150mm | ||
| ◆ 1200*1200*150mm | ||
| ◆ 1400*1200*150mm | ||
