AOT, a brand of PEBs, Prefabricated house and Modular container house, is Trusted & Tested.

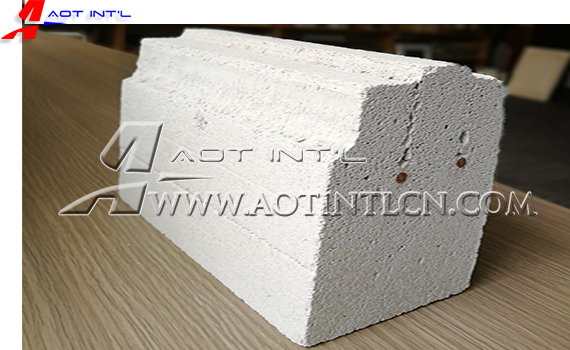

AAC Panel (Autoclaved Aerated Concrete Panel) is also called ALC Panel (Autoclaved Lightweight Concrete Panel), is made from silica sand, cement and lime, with anti-corrosion treated reinforcement and cured by high temperature.
ALC Panel can be used as external wall panel (exterior wall panel), internal wall panel (interior wall panel), partition wall panel, flooring, roofing, fence, cladding, curtain wall and facade etc.
ALC Panel has been well used in various kinds of buildings, such as public facilities, industrial constructions, civil housing, hospitals, hotels, apartments, villas, schools, stores, supermarkets etc.
ALC Panel can replace traditional precast concrete and clay bricks very well. Also the panels can easily cut, drilled, screwed when installing with fast speed due lightweight and precast.
ALC Panel / AAC Panel Specification |
| Dry Density: | 500(+-20)kg/m2 | |
| Compressive Strength: | >=4Mpa | |
| Thermal Conductivity: | 0.11 W.m-1.K-1 | |
| Dry Shrinkage: | <0.3 mm.m-1 | |
| Frost Resistance: | Quality lost | <1.5% |
| Post-frost strength | >3.5Mpa | |
| Impact Resistance: (No crack after pendulum impact from 30kg sand bag) | >5 | |
| Single Point Suspension Force: | 1200N | |
| Fire Resistance: | 3.23hours (100mm) / 4hours (150mm) | |
| Impermeability (300mm liquid level drawdown in 6days) | 88.3mm | |
| Surface evenness: | 1mm | |
| Dimension: | Width: 600 | |
| Thickness: 50mm, 75mm, 100mm, 125mm, 150mm, 175mm, 200mm | ||
| Max. length: 6800mm | ||

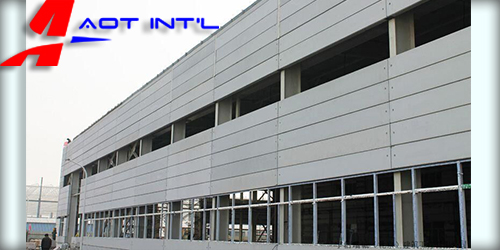

| AOT ALC / AAC Panel, Exterior Wall Panel |

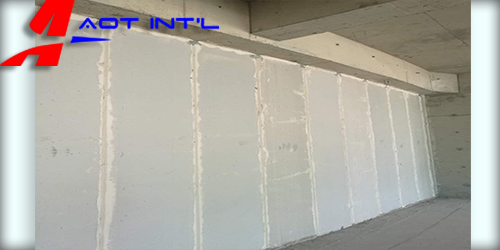

| AOT ALC / AAC Panel, Partition Wall Panel |

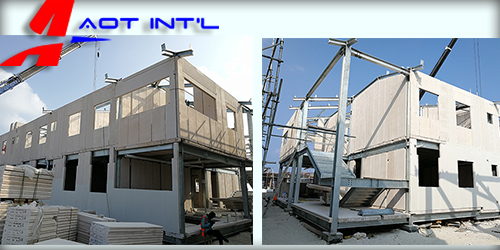

| AOT ALC / AAC Panel, Prefab Office, Accommodation |

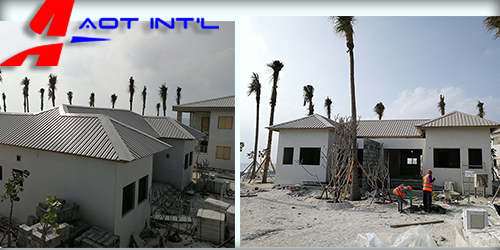

| AOT ALC / AAC Panel, Steel Villa |
