Prefabricated house

AOT, a brand of PEBs, Prefabricated house and Modular container house, is Trusted & Tested.

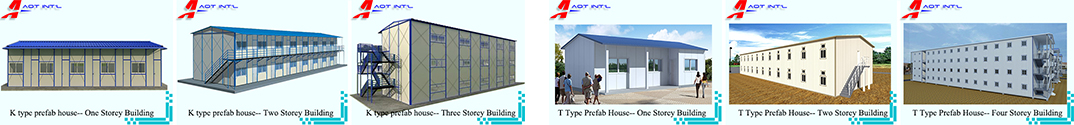

Prefabricated building / Prefab house is built with light steel frames and kinds of sandwich panels. Basically there were 2types of prefab house system: K type prefabricated house and T type prefabricated house.

Prefabricated building / Prefab house are used for diverse applications such as:

The columns are double C section profile steel(K type) or Square tube (T type), and rafter is pre-welded tri-angle beams. The roof and wall panels could be Rockwool, Fiberglass or EPS insulated sandwich panels with different thickness like 50mm, 75mm or 100mm. Comprising with other components like light steel doors, Aluminum / PVC windows, gypsum board suspended ceiling, plastic floor leather, electrical system and Sanitary facilities & plumbing etc. to be a self-contained temporary house units.

The K type prefabricated house is a modular building system, there were its standard dimensions, the width could be 5560mm, 6230mm or 7360mm, while the length could be N*K (K=1800mm), and the height could be 3P, 6P or 9P (P=950mm, 3P is single floor, 6P is two floors and 9P is three floors)

The main difference of T type prefab house from K type prefab house is the steel columns are invisible from outside, thus appearance is better and there will be a better airtightness performance to make the insulation good for heat, wind and sand, it widely used in sandy weather like Middle east and rainy weather like South Asia. Another important difference is T type prefab house is total customized according customers’ requirements, it could be built with any dimensions to fit the site condition properly.

The main columns of T type will be the square tube while the rafter is same pre-welded tri-angle beams.
