Flat Pack Container School Prefab Classroom

AOT, a brand of PEBs, Prefabricated house and Modular container house, is Trusted & Tested.

What’s flat pack? AOT flat pack container is the modular industrial prefabricated system, comprising Roof, Floor, Pillars and Wall panels (with doors/windows). AOT flat pack container’s dimension conform to ISO shipping container (20ft), the Roof & Floor is prefabricated ready in AOT factory. While it’s transportation, AOT will take the “All in one package” solutions, which means all the components of one modular container house will be packed in one Flatpack, including 1(ONE) Roof, 1(ONE) Floor, 4(FOUR) Pillars, All wall panels (including doors & windows) and all the other related accessories.

4(FOUR) pcs Flat pack units could be combined as one bundle, and the dimension is same as ISO shipping container, with ISO standard corner casts, are easy for transportation and crane lifts during the shipment. Further to the Flat pack transportation solutions, the flat pack container house could be loaded in to 40ft HQ shipping containers, which quantity will be 6(SIX) units per 40ft HQ shipping container. AOT Flat pack container house system could be combined in both horizontal and vertical, also could be stacked up to Max. 3floors, to make more large space for multi-purpose usage.

AOT Flat pack container houses are used for diverse applications such as:

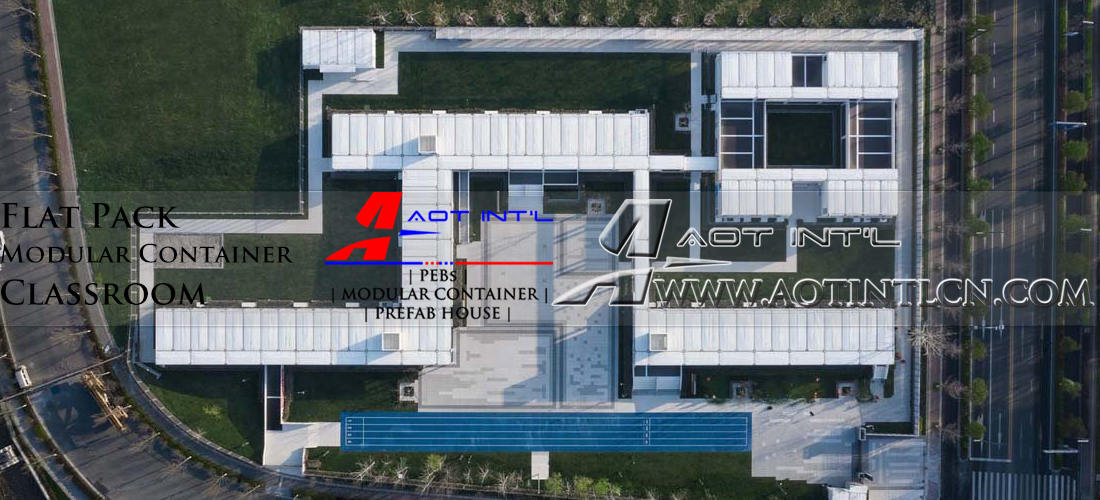

AOT Steel Structure Building | AOT Flat Pack Container School Solution

In today’s fast-paced world it has never been more important to look for quick and efficient solutions. Particularly in the School/Classroom Construction, Construction industry, Mining industry, Oilfield industry, Gas industry etc., time means money - and that’s why flat pack containers have become so popular.

Here at AOT Steel Structure Building---Flat Pack Containers, we have a range of high-quality flat pack containers available, AOT ONE-STOP Solutions for Pre-fabricated Container | Flat-pack Container complete Prefab School/Prefabricated Classroom.

AOT Steel Structure Building--Flatpack Containers has an experienced team of professionals able to assist you through the whole process of designing your Modular container classroom, all the way through to the logistics of delivering the units to your site.

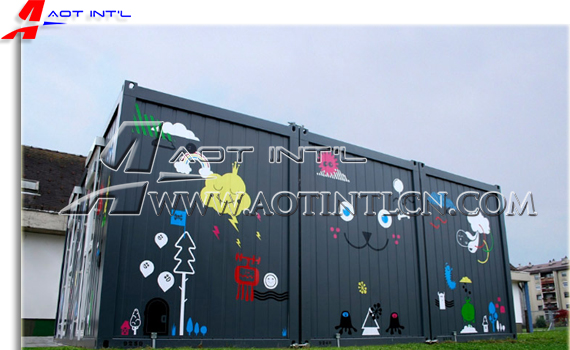

AOT Steel Structure Building | Flat Pack Container Classroom Cabin

Pre-fabricated modular and steel container type classroom/prefab school

AOT Steel Structure Building--Flatpack Containers can provide accommodation facilities, ablutions, site offices, mobile storage units, mobile refrigeration units, kitchens fitted with high-quality catering equipment, dining and canteen halls, laundry units with heavy-duty washing and drying units, water and sewage treatment plants and tank containers for bulk liquid storage of hazardous and non-hazardous products.

AOT Steel Structure Building--Flatpack Containers Units are completely modular in design and can be joined together, with windows and doors positioned to suit almost any application. Bundles are also CSC certified, which makes them ideal for ocean freight, and hassle-free delivery to any international destination.

The standard AOT Steel Structure Building--Flatpack Containers units vary from single open-plan classroom/school units, to units with en-suite bathrooms, ablution units, and accommodation blocks of 500 units or more, and can be joined into large modular structures to make canteens and recreation facilities.

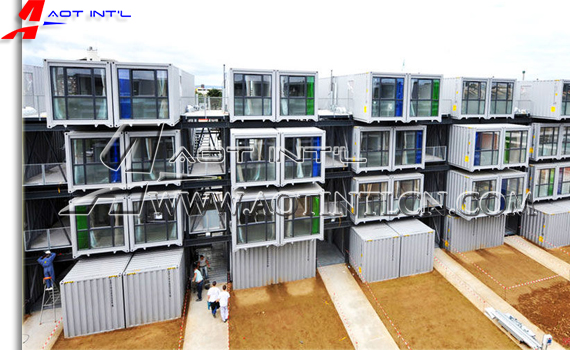

	AOT Steel Structure Building |  Flat Pack Container Classroom China Manufacturer

Shipping containers converted for Prefab School/Prefabricated School

AOT Steel Structure Building has new and used 20ft (6m) and 40ft (12m) CSC certified shipping containers too, with our professional team tasked with converting containers used in specific applications such as container ablutions, accommodation units, kitchens, offices and storage space. AOT Steel Structure Building has deployed modular container classroom using the shipping container as the basic unit for the development of remote school facilities.

Our flat pack containers come in various sizes and boast many useful features. For example, they’re:

Made from lightweight yet durable materials

Either galvanized or powder coated

Wind and water-tight

Versatile, suitable for use in any location

Easy to transport

Affordable

Modular (i.e. can be linked together)

Incredibly quick and easy to assemble

Just as the name suggests, this type of shipping container will arrive as a flat pack package – complete with everything you require to get it up-and-running. There’s no need for any specialist tools or machinery, such as forklifts or cranes. Each panel is light enough to lift. They can simply be carried to their desired position and constructed – by hand – in less than an hour.

If you would like to discuss your requirements further, simply get in touch with the team on ken@aotintlcn.com

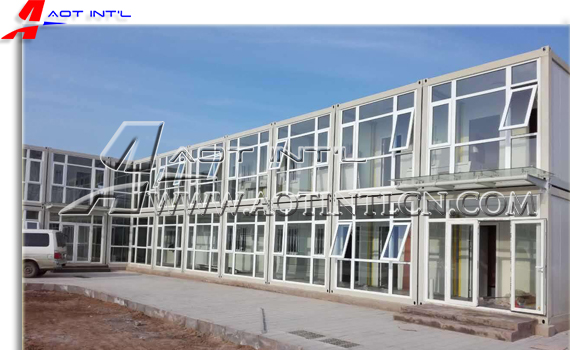

AOT Steel Structure Building | Flat Pack Modular Container Classroom	AOT Steel Structure Building | Modular Container Classroom Prefabricated School

◆   Roof main frame--- Main beam   3.0mm thickness Galv. with electrostatic spraying

◆   Roof secondary frame--- 80*40*1.3mm galvanization

◆   Lift corner piece--- 6mm /10mm thickness corner cast

◆   Roof covering plate--- 0.5mm thickness Galv. metal steel sheet

◆   Roof insulation--- 100mm thickness fiberglass with PE foil

◆   Roof suspended ceiling--- 0.4mm Galv. metal sheet

◆   Floor main frame--- 3.0mm thickness Galv. electrostatic spraying

◆   Floor secondary frame--- C120*60*1.7mm, galvanization

◆   Lift corner piece--- 6mm /10mm thickness corner cast

◆   Floor bottom covering plate--- 0.23mm thickness Galv. metal steel sheet

◆   Floor insulation--- 100mm thickness fiberglass

◆   Floor board--- 18mm thickness fiber cement plate

◆   PVC flooring--- 1.6mm thickness vinyl leather

◆   Corner pillar--- 3.0mm thickness Galv. with electrostatic spraying

◆   Thickeness: 50mm /75mm

◆   Width: 1150mm

◆   Insulation Core: Fiber glass / Rockwool / EPS

◆   Facades: 0.4mm /0.5mm thichness galvanized color metal sheet

◆   Door--- Light steel single open door (845*2035mm) with locker

◆   Window--- UPVC sliding window,double glass with mosquito screen &security fence

◆   Electrical wire--- 2.5mm2 for lighting system, and 4mm2 for AC units.

◆   Socket--- 10A five holes universal socket.

◆   Light--- double tube fluorescent lamp, 220V, 50-60HZ

◆   Switch--with junction box

◆   Electrical distribution box-- box + breakers + earth leakage protective device

◆   Industrial plug--- 5holes

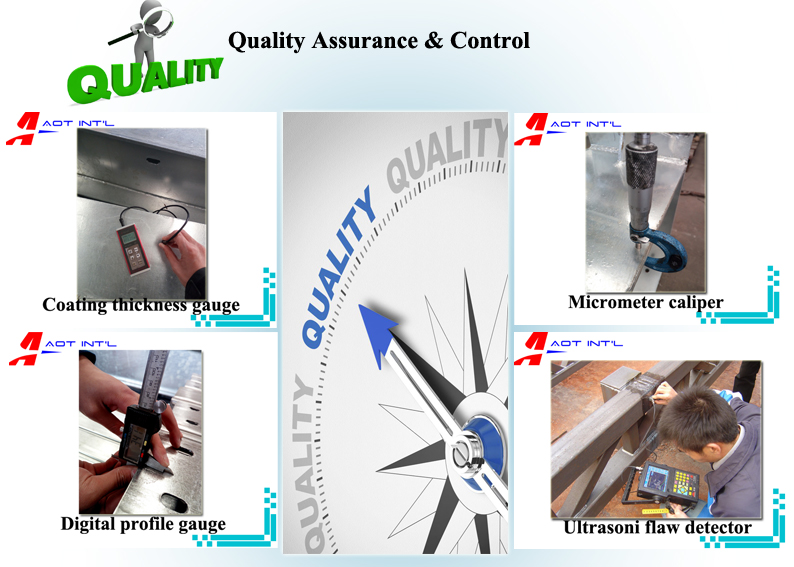

AOT, Quality assurance program endeavors management commitment to seed quality in all phases of its activities. The commitment begins from approaching inquiries, meeting the requested specifications, handling project documents, in-process quality inspections, to meet the delivery schedule and till the end products are erected satisfactorily. AOT quality assurance program comprising:

●   Raw materials traceability

●   Fabrication inspection, such as Cutting, Drilling, Beveling, Welding operation, Fit-up, Rust cleaning, Painting inspection, Dimension accuracy inspection

●   Package inspection, to protect the materials during transportation, further more to meet the loading requirements into containers

●   Documents collection, such as detailed packing list, installation drawings

●   Coating thickness gauge

●   Digital profile gauge

●   Micrometer caliper

●   Ultrasonic flaw detector
